Burq Vision

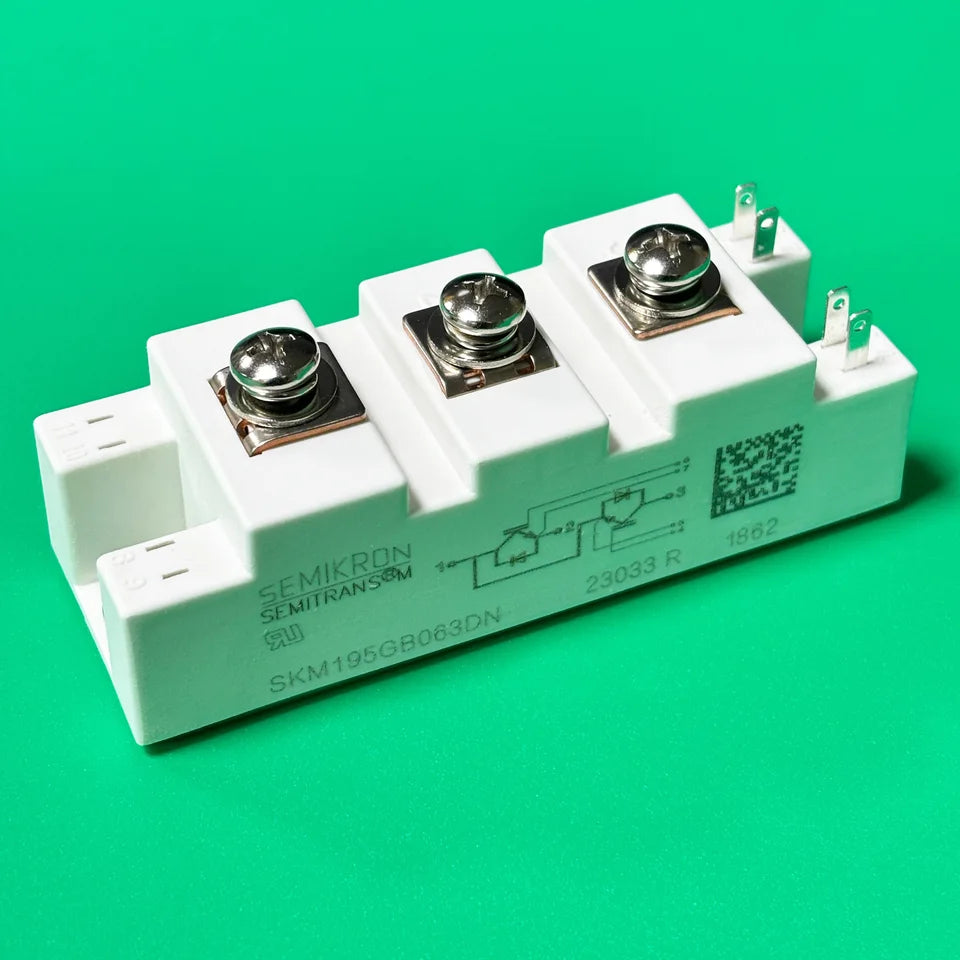

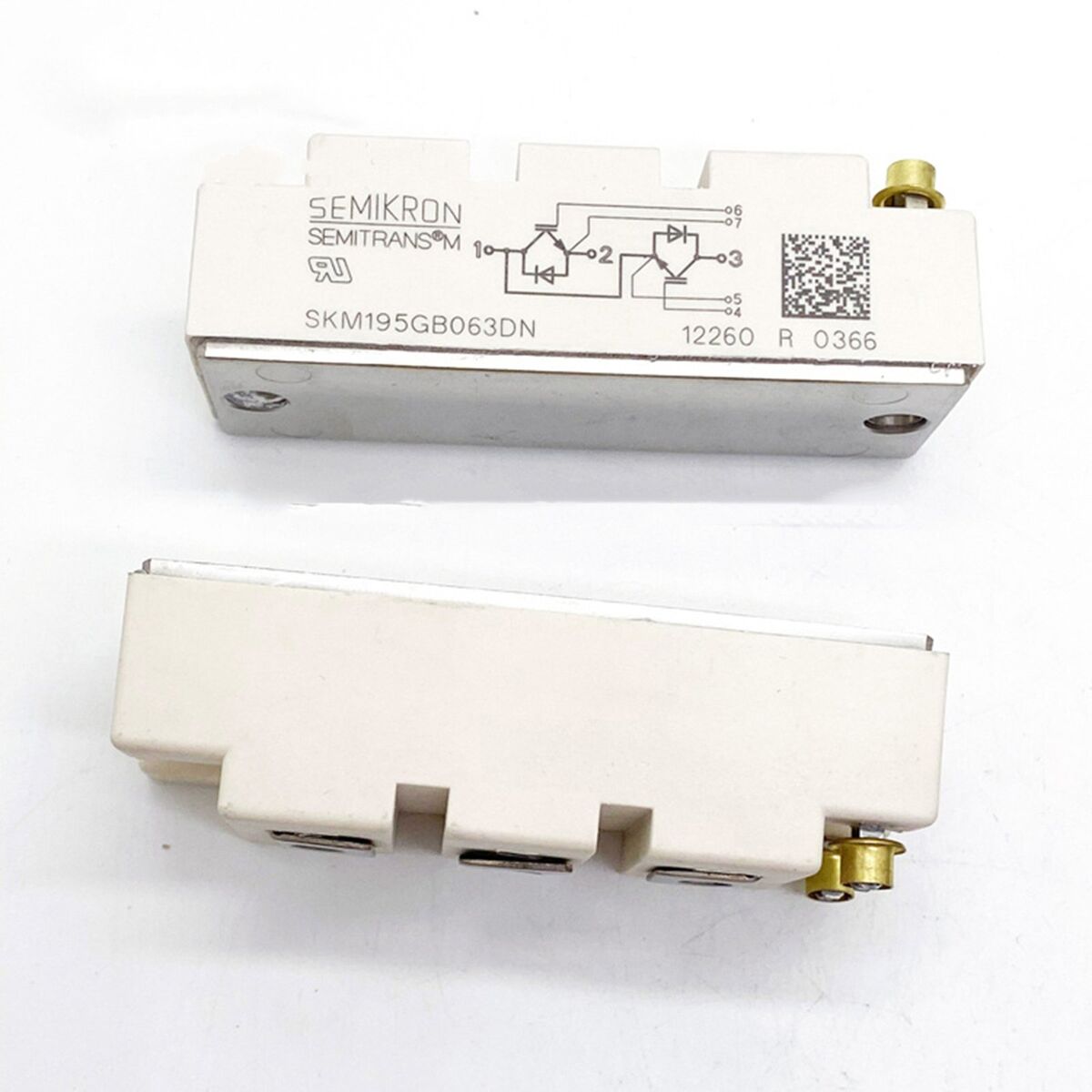

SKM195GB063DN – Semikron IGBT Power Module
SKM195GB063DN – Semikron IGBT Power Module
Regular price
Rs.39,000.00 PKR
Regular price
Sale price
Rs.39,000.00 PKR
Unit price
/
per
Low stock: 3 left
Couldn't load pickup availability
The SKM195GB063DN is a high-performance Insulated Gate Bipolar Transistor (IGBT) module from Semikron's SEMITRANS 2 series. Designed for efficient power switching, it combines fast switching capabilities with low conduction losses, making it suitable for applications such as motor drives, inverters, and power supplies
Details ▼
| Color | white |
|---|---|
| Number of Pins | 7 |
| Package Type | SEMITRANS 2 |
| Rise Time | 85 ns (typical) |
| Junction Temperature | -40°C to +150°C |
| Power Dissipation | 830 W |
| Collector-Emitter Saturation Voltage | 2.1 V (typical) at 25°C |
| Gate-Emitter Voltage | ±20 V |
| Continuous Collector Current | 250 A |
| Collector-Emitter Voltage | 600 V |
| Design Features | NPT technology, integrated anti-parallel diode, RoHS compliant |
